Pegelstärke

Five-in-One highend dual VCA/Ringmod/Panner/Crossfader/Distortion module

Discrete highend ultra lownoise and low distortion multi-purpose dual VCA. Pegelstärke is translated to sound level / sound force.



This Moog 5U size module is a highend and transparent wide range dual VCA, a highend dual balanced Ringmodulator, a stereo panner, a dual output crossfader or anything in between. It's your choice what you want to do with it. And don't forget two faaat distortion modes per VCA/Panner/RM-Channel are possible! Think creative beyond the borders. This module gives you new ways of soundshaping. All together is featured with an unchallenged sonic quality.

For purchasing and further information feel free to drop a message

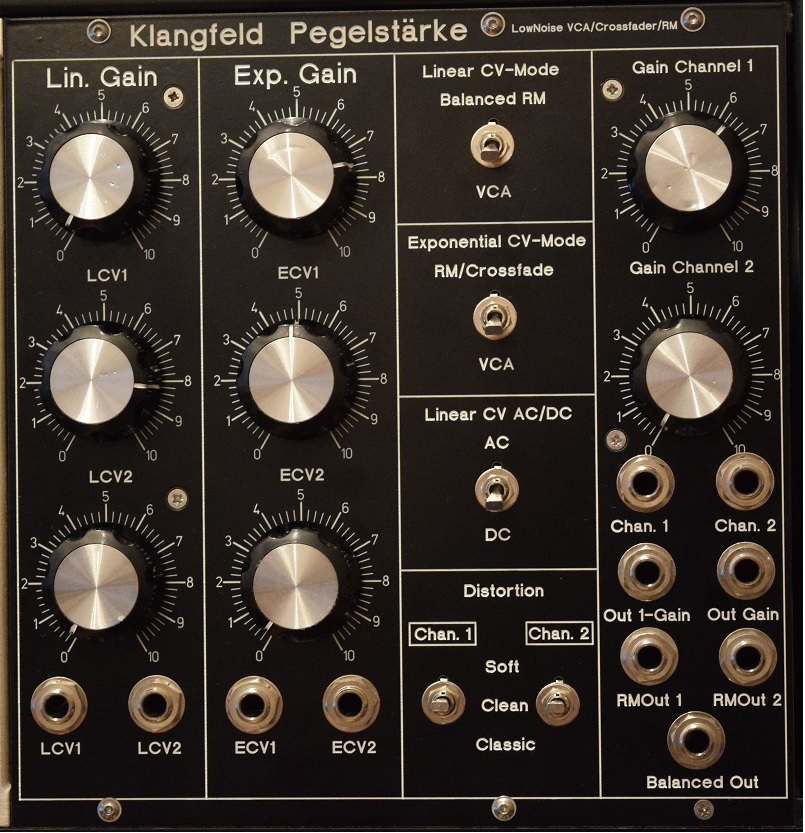

Pegelstärke Front



Pegelstärke PCB

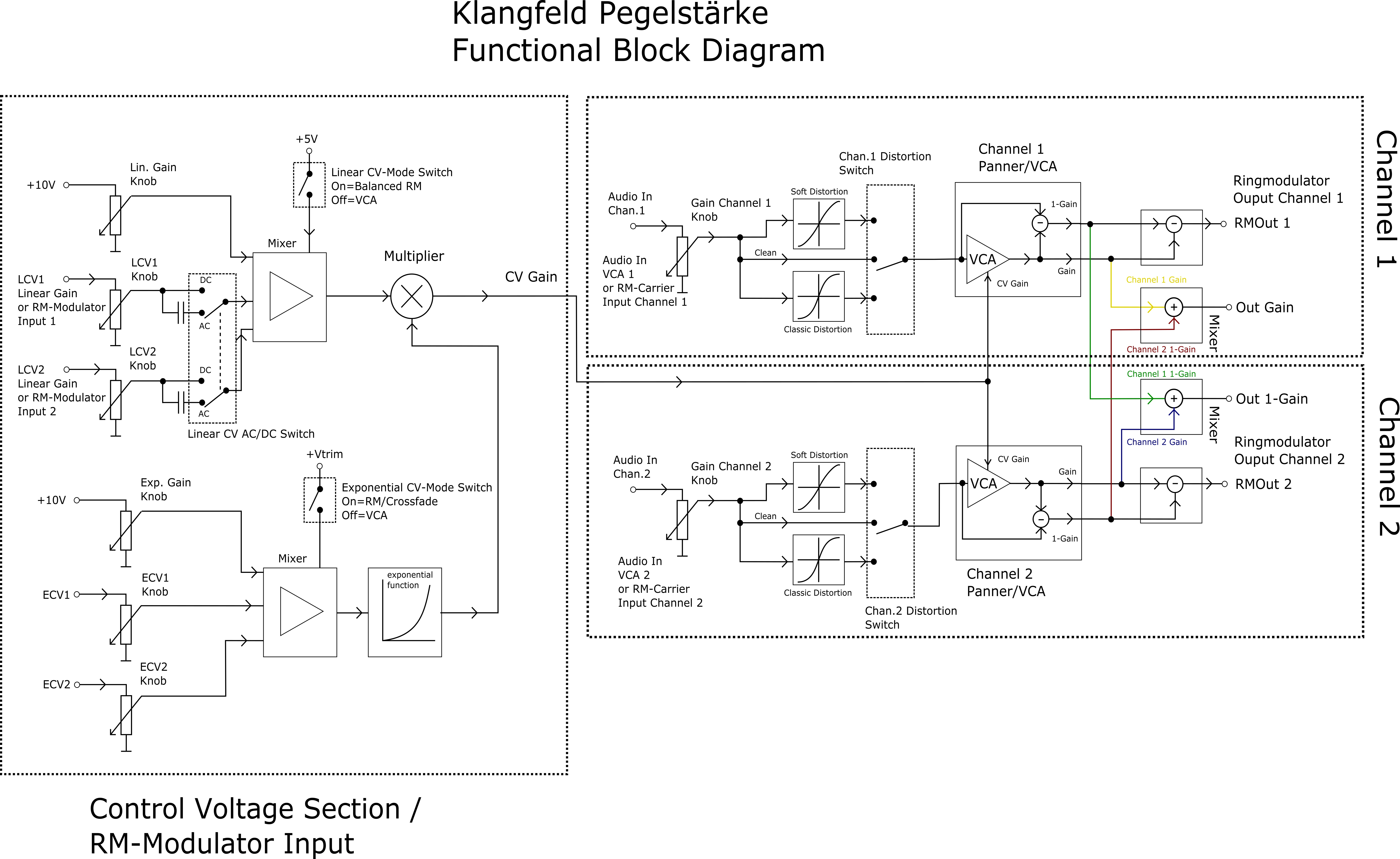

Functional block diagram of the Pegelstärke module

Pegelstärke Power Supply:

  • +15V  @ max. 160mA
  •  -15V  @ max. 145mA

Pegelstärke Features:

  • State of the art analog design, a perfect blend between discrete transistor circuits and modern electronic
  • synthesizers.com & MOTM power connectors
  • Highend long lasting electronic parts
  • High quality potentiometer and switchcraft jacks
  • symmetric balanced studio level output of the VCA output
  • Linear and Exponential Gain Control in VCA-Mode at the same time!
  • Multipurpose module: Use ist as VCA, Crossfader, Stereo Panner, Ringmodulator, Sidechaining device and many more.
  • Ultra low distortion in clean mode, < 0.01% THD
  • The Linear Gain and the Exponential Gain Levels are internal multiplied for maximal musical control and possibilities.
  • Use it like two VCAs, e.g. velocity controls the Exponential Gain and the envelope controls at the same time the Linear Gain. Ready is the dynamic playable sound!
  • Two distortion modes for the two Audio Channels, classic (well known OTA response) and soft (smooth and soft JFET response). Shape your sound, transparent, crunchy, cripsy or ultra fat!
  • Ultra low noise design for highend studio quality especially for use with external audio signals
  • convient extra functions for maximal possibilites:

    • two built in mixers for Linear Gain Control an Exponential Gain Control
  • Perfect temperature stable in every parameter over a wide range
  • Capacitor-free audio path for maximum clarity and best  ultra-deep bass response
  • Circuit optimized for modulation in the audio frequency range of all voltage controllable parameters


Price 999€
